Light-Dedup: A Light-weight Inline Deduplication Framework for Non-Volatile Memory File Systems

1. Summary

Motivation of this paper

• motivation

  • NVM's cost can be reduced by eliminating redundant data blocks

    • lacks complete insights into NVM's I/O mechanisms

  • deduplication can enlarge the logical space and reduce the amortized cost of storage devices

    • deduplication for expensive NVM is profitable and urgent

• problem

  • traditional disk-based deduplication approaches (using the cryptographic hash) to identify redundant data blocks

    • do not fit well with NVM --> shift the performance bottleneck from I/O to CPU

  • existing works: lack of comprehensive insights into NVM's I/O mechanisms

    • the long latency of uncached reads hinders the performance of content-comparison

      • trade slow duplicate writes for faster reads

Light-Dedup

• goal

  • a novel light-weight inline deduplication framework for NVM file systems

    • maximizing the deduplication performance based on NVM characteristics

    • retaining low deduplication metadata I/O amplification

• observations

  • cryptographic hash calculation dominates up to 64.9% of the whole write

  • non-cryptographic hash-based redundant block identification adds negligible overheads to the normal non-deduplication write path

  • deduplication performance is significantly limited by the long read latency

    • read/write asymmetry under low thread count is not enough

    • current hardware prefetcher of Intel 64-bit arch fails to remedy the drawbacks of NVM's long media read latency

      • design for DRAM, prefetch two cache lines ahead

    • intend to achieve asynchronous reads (manually)

      • leverage memory prefetch instructions

  • metadata I/O amplification in NVM deduplication

    • Ideal

      • 40 bytes

    • All-in-NVM

      • use an in-NVM hash table to store and index the deduplication metadata to reduce DRAM usage (random access)

    • Entry-based

      • metadata in NVM and maintain the in-DRAM index to locate them (random access in aged systems) --> free list

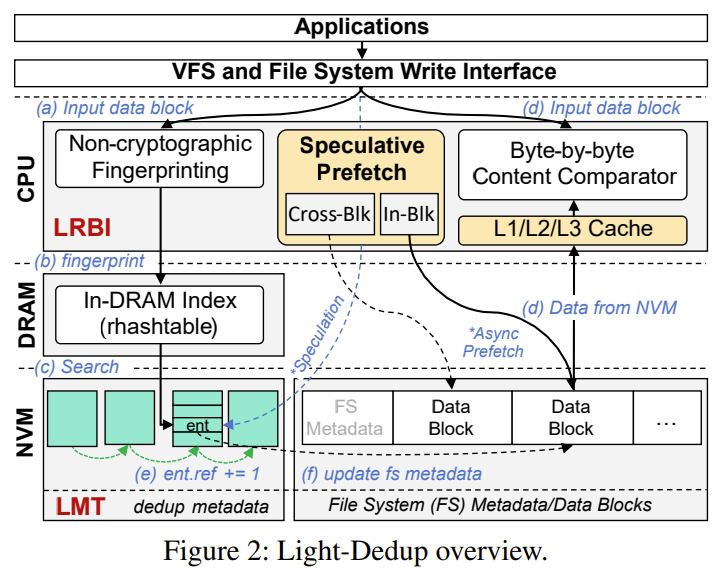

• Arch

  •

    • if an entry is found, but the content of the stored block and the input one are different

      • not allocate an entry for it, not affect the correctness of the deduplication system

• Light-Redundant-Block-Identifier (LRBI)

  • non-cryptographic hash + speculative-prefetch-based byte-by-byte content comparison

    • In-Block and Cross-Block prefetch --> asynchronously load speculated data into CPU/NVM buffers

  • In-Block Prefetch (IBP)

    • step-1: leverage the large access granularity of NVM (e.g., 256 bytes), issue 16 prefetch instructions

    • step-2: prefetch the remaining

  • Cross-Block Prefetch (CBP)

    • exploit the parallelism among CPU tasks

    • speculatively prefetch the to-be-compared data block

      • using a hint field in the deduplication metadata entry to record the related information

        • trust degree

  • CBP are frequently triggered when the workload exhibits good deduplication continuousness

    • most hints are trusted

    • otherwise, fall back to IBP

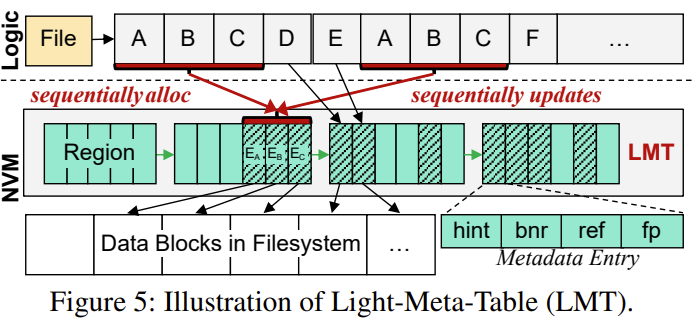

• Light-Meta-Table (LMT)

  • mapping from FP to PBA, hint of where and whether to prefetch the to-be-compared block

  • In-DRAM Index: search for the entry

  • In-NVM Layout: allocate meta entries in a coarse region

    • region-based layout --> for locality, in a block size (4KiB)

    • linked by a 8 byte pointer to avoid static allocation

  •

Implementation and Evaluation

• implementation

  • based on NOVA

• evaluation

  • trace

    • FIO, FIU, Homes (collected by authors on their OS Lab server)

  • baseline

    • NOVA, NV-Dedup, DeNova

  • microbenchmarks

    • throughput of 4 KiB I/O writes

    • throughput of 2 MiB I/O writes

  • real-world scenarios

  • speculative prefetch efficiency

  • metadata I/O amplification in LMT

2. Strength (Contributions of the paper)

• perform an in-depth analysis of how deduplication can be affected by NVM's I/O mechanisms

• Light-Redundant-Block-Identifier (LRBI)

  • non-cryptographic hash with speculative-prefetch-based content-comparison

    • hide its media read latency

• Light-Meta-Table (LMT)

  • region-based layout --> with a good locality and low metadata I/O amplification

    • managing deduplication metadata in the region (i.e., 4KiB block) granularity to maintain access locality

• Light-Dedup based on NOVA for implementation

3. Weakness (Limitations of the paper)

• writing: some symbols are hard to follow

• prefetch

  • hard to understand the rationale of CBP

4. Some Insights (Future work)

• NVM (Optane DCPMM)

  • byte-addressability, persistence, and low latency

  • much more expensive than HDD and SSD

• five common I/O features of NVM

  • asymmetry in read/write bandwidth

    • read bandwidth of NVM is up to 3x than its write

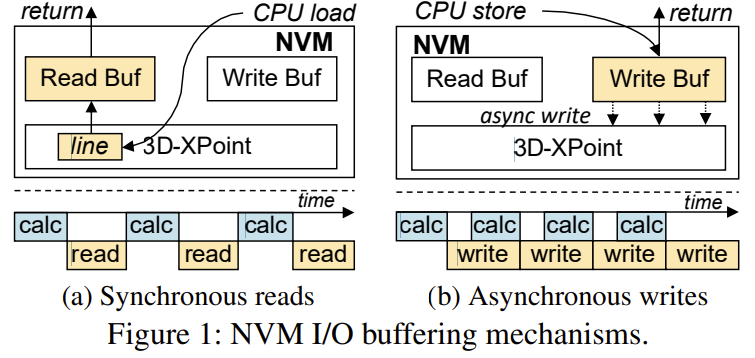

  • I/O with buffers

    •

    • hide long media write latency

  • coarse access granularity

    • NVM has a larger access granularity than a cache line

  • long media read latency

    • synchronous data fetch mechanism

  • memory interface

    • can be accessed by CPU store/load
